A thermal power plant converts the energy of fuel into steam, uses that steam to drive a turbine, and turns the turbine through a generator to produce electricity. Boiler feed water treatment, steam generation, condensate return, cooling, and electrical distribution all have to work together for stable output.

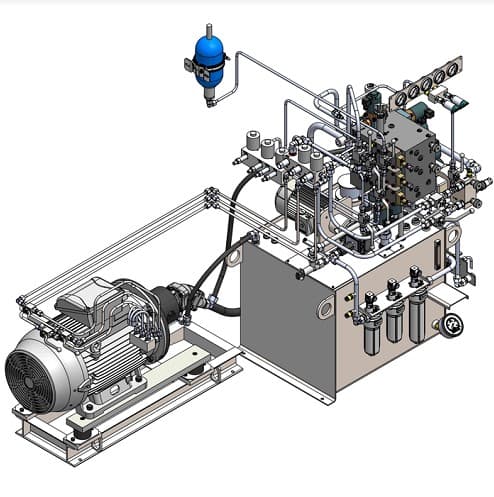

Hydraulic systems use pressurized fluid to transmit force and motion. Pumps create flow, valves control direction and pressure, actuators create movement, and reservoirs, filters, and coolers support reliable operation. Good design depends on matching load, pressure, cleanliness, and control requirements.
Steam tables help engineers and operators quickly estimate saturation temperature, enthalpy, and phase conditions for steam and condensate at different pressures. They are essential when sizing utilities, reviewing heat duties, or checking plant operating conditions.
Useful reference values and a basic sheet metal estimator.
Steam Table
Saturation Temp
151.8°C
Steam Enthalpy
2748 kJ/kg
Typical Use
Plant service steam
| Pressure (bar) | Sat. Temp (°C) | h_g (kJ/kg) |
|---|---|---|
| 1 | 99.6 | 2676 |
| 3 | 133.5 | 2725 |
| 5 | 151.8 | 2748 |
| 10 | 179.9 | 2778 |
| 15 | 198.3 | 2790 |
Sheet Metal Calculator
Enter basic dimensions to estimate flat sheet area and weight. This is useful for quick planning, quoting, and material checks.
Area
2.00 m²
Approx. Weight
31.40 kg
